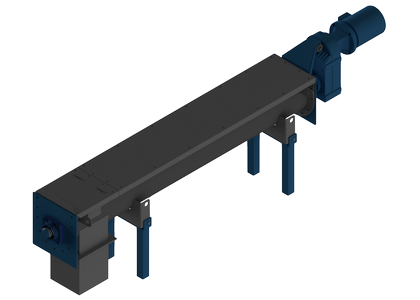

Screw Conveyor is a machine used to transport various types of materials. Inside of the trough, there is a screw (pipe containing a spiral blade coiled around the shaft) which transfers material through rotation. Two types of conveyor can be distinguished depending on the location of the drive: pushing and pulling. In the pushing conveyor, the drive is located in front of the inlet, in the pulling conveyor - the drive is located behind the outlet.

Design automation was created for all variants predicted. All parts are standard but located on the local workstation or local server.

The modeling type was used: Local-To-Assembly (about types, you can read here).

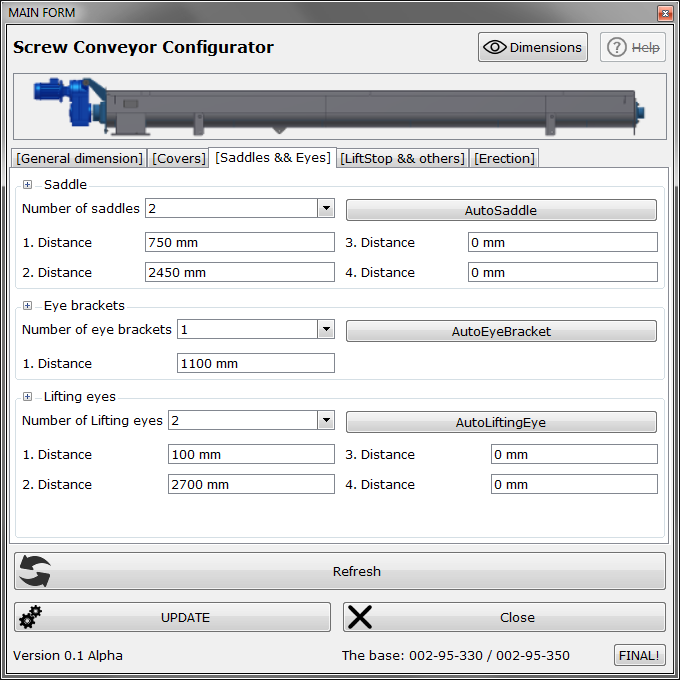

The interface and model have been designed for people with minimal knowledge of the machine's operation. The occurrence of an error during construction has been minimized due to built-in safety functions. All correlations in the model and replacement of parts occur automatically. The user's action is limited to selecting or providing the appropriate values.
